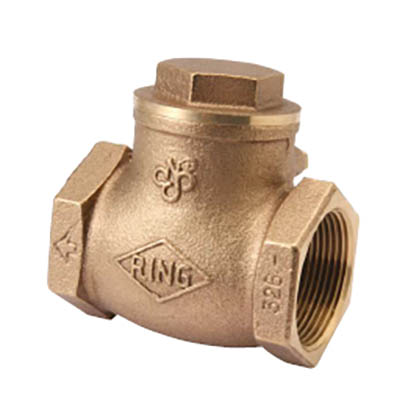

BRONZE SWING CHECK VALVE FIG.326
125S/200W.0.G
FIG.326-砲金銅橫式逆止閥
BRONZE SWING CHECK VALVE
Screwed cap,Swing type disc,Threaded ends,Conform to CNS 11088 B2763
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CAST BRONZE |
| 閥蓋 CAP | CAST BRONZE |
| 閥盤 DISC | CAST BRONZE |
| 堵頭 PLUG | BRASS |
| 銷 PIN | BRASS |
| 最高使用壓力 | 試驗壓力(水壓) | ||
|---|---|---|---|
| 120°C以下之水、油、瓦斯 | 180°C以下之蒸汽、水、油 | 閥體 | 閥座 |
| 10.0kg f/cm2 | - | 21.1kg f/cm2 | 14.1kg f/cm2 |

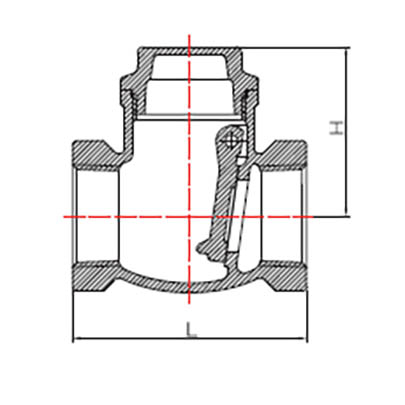

| 尺寸 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| L | 54 | 61 | 70 | 81 | 91 | 109 | 137 | 150 | 180 |
| H | 40 | 44 | 50 | 55 | 64 | 71 | 82 | 93 | 108 |
