BRONZE GLOBE VALVE FIG.303
125S/200W.0.G
FIG.303-砲金銅球型閥

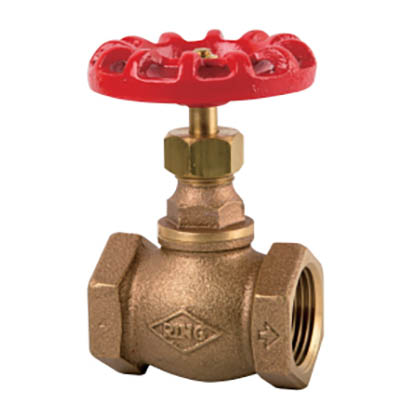

BRONZE GLOBE VALVE
Rising stem Screwed bonnet,Swivel disc,Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CAST BRONZE |
| 閥蓋 BONNET | CAST BRONZE |
| 閥桿 STEM | DZR# (抗脫鋅材質) |
| 閥盤 DISC | DZR# (抗脫鋅材質) |
| 迫緊 PACKING | PTFE |
| 手輪 HANDWHEEL | CAST IRON |
| 最高使用壓力 | 試驗壓力(水壓) | |
|---|---|---|
| 120°C以下水、油、瓦斯 | 閥 體 | 閥 座 |
| 10.0kg f/cm2 | 21.1kg f/cm2 | 14.1kg f/cm2 |

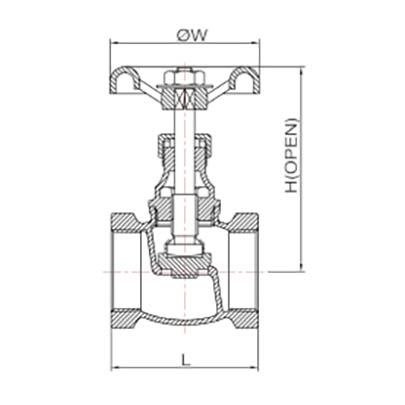

| 尺寸 | 1/2˝ | 3/4˝ | 1 |
| L | 50 | 57 | 65 |
| H | 73 | 79 | 102 |
| øW | 54 | 61 | 70 |
