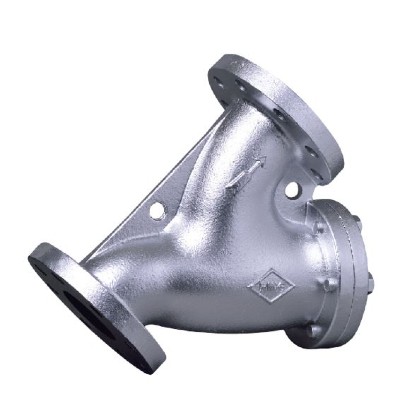

CAST IRON Y-PATTERN STRAINER FIG.078
JIS-10K
FIG.078鑄鐵Y型過濾器
CAST IRON Y-PATTERN STRAINER
Bolted cover,Y-pattern body & Punched stainless steel plate screen,Flanged ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CAST IRON |
| 閥蓋 BONNET | CAST IRON |
| 過濾網 SCREEN | STAINLESS STEEL |
| 堵頭DRAIN PLUG | CAST IRON |
| 墊片 GASKET | NON-ASBESTOS |
| 最高使用壓力 | 試驗壓力(水壓) | |
|---|---|---|
| 120°C以下之靜流水 | 120°C以下之脈動水、油、空氣 | 閥 體 |
| 14.0kg f/cm2 | 10.0kg f/cm2 | 21.1kg f/cm2 |

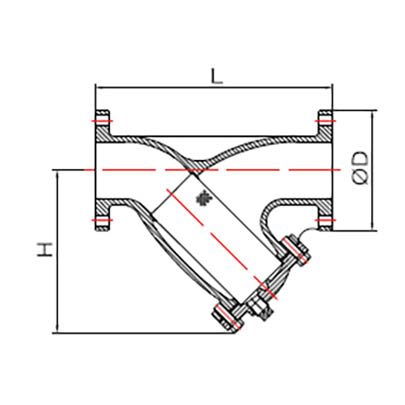

| 尺寸 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
| L | 250 | 285 | 315 | 370 | 420 | 490 | 570 | 680 | 800 | 950 |
| H | 170 | 200 | 245 | 280 | 320 | 365 | 465 | 515 | 605 | 725 |
| øD | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 | 490 |
