CAST IRON FULL FLOW FOOT VALVE FIG.032
10K
FIG.032-鑄鐵拉柄式底閥

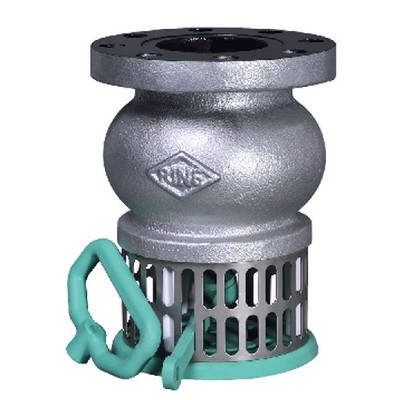

CAST IRON FULL FLOW FOOT VALVE
Cleaning lever bracket,Stainless strainer.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Cast Iron |
| 閥盤 DISC | Cast Brass (2"~3") Ductile Iron (4"~12") |
| 閥座 BODY SEAT | Cast Bronze (BC1) |
| 閥座環SEATRING | NBR |
| 洗桿 WASHER LEVER | Nylon (2"~4") Ductile Iron (5"~12") |
| 過濾網 SCREEN | Stainless Steel (304) |
| 底盤 PLATE | Nylon (2"~6") Ductile Iron (8"~12") |
| 最高使用壓力 MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST | |
|---|---|---|
| 80°C以下之脈動水 | 閥體 | 閥座 |
| 10 kg f/cm2 | 21 kg f/cm2 | 15.4 kg f/cm2 |

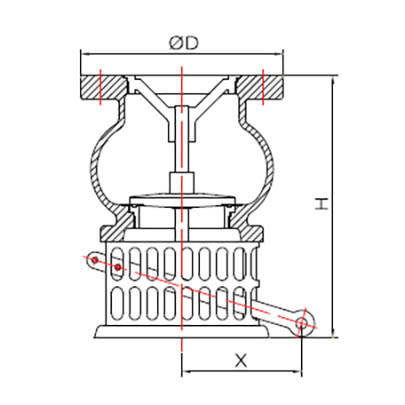

| 尺寸 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| H | 205 | 200 | 240 | 255 | 270 | 285 | 395 | 420 | 475 |
| øD | - | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 |
| X | 95 | 96 | 110 | 113 | 142 | 160 | 198 | 236 | 260 |
