DUCTILE IRON GATE VALVE FIG.801
JIS-16K
FIG.801 - 延性鑄鐵昇桿式閘閥

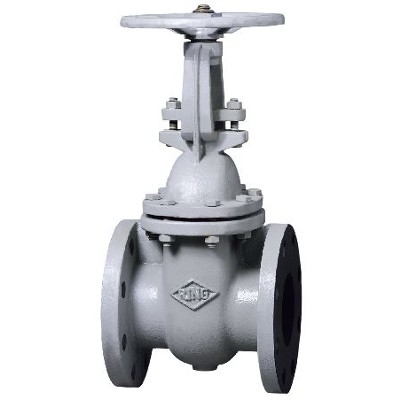

DUCTILE IRON GATE VALVE
Outside screw & yoke, Rising stem, Soild wedge disc, Renewable seat rings, Flanged ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Ductile Iron |
| 閥蓋 BONNET | Ductile Iron |
| 閥桿 STEM | Stainless Steel |
| 閥盤 DISC | Ductile Iron |
| 閥座 SEAT RING | Bronze (Option：Stainless steel) |
| 迫緊 PACKING | PTFE |
| 手輪 HANDWHEEL | Cast Iron |
| 最高使用壓力 MAX.WORKING PRESSURE | 試驗壓力(水壓) HYD. TEST | |||
|---|---|---|---|---|
| 尺寸 | 120°C以下之靜流水 | 120°C以下之脈動水、油、空氣 | 閥 體 | 閥 座 |
| 2"~12" | 22 kg f/cm2 | 16 kg f/cm2 | 24 kg f/cm2 | 18 kg f/cm2 |
| 14"以上 | 17.6 kg f/cm2 | 8.8 kg f/cm2 | 28 kg f/cm2 | 20 kg f/cm2 |
註：本體採用EPOXY塗裝。

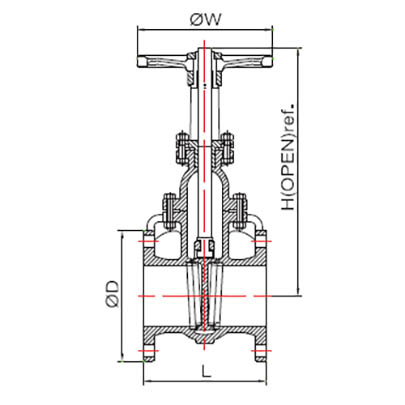

| 尺寸 | 2" | 21/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 350 | 381 | 409 |
| H | 345 | 385 | 460 | 545 | 677 | 761 | 1002 | 1150 | 1340 | 1515 | 1780 |
| øD | 155 | 175 | 200 | 225 | 270 | 305 | 350 | 430 | 480 | 540 | 605 |
| øW | 145 | 170 | 195 | 220 | 245 | 275 | 340 | 395 | 490 | 490 | 600 |
