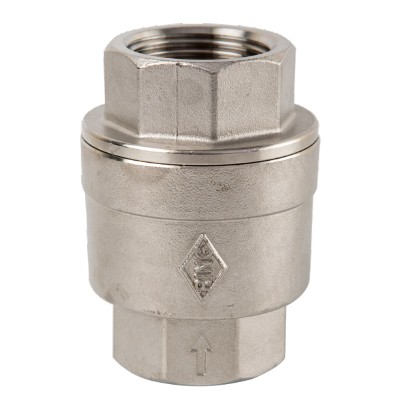

STAINLESS STEEL SILENT CHECK VALVE FIG.973
300 W.O.G
FIG.973 -不銹鋼緩衝式逆止閥
STAINLESS STEEL SILENT CHECK VALVE
Spring loaded lift type disc, Renewable seat, Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CF8M |
| 閥蓋 CAP | CF8M |
| 閥盤 DISC | CF8M |
| 閥座 Seat | VITON |
| 彈簧 Spring | SUS304 |
| 最高使用壓力 MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST | |
|---|---|---|
| 90°C以下之靜流水 | 閥體 | 閥座 |
| 300 PSI | 450 PSI | 330 PSI |

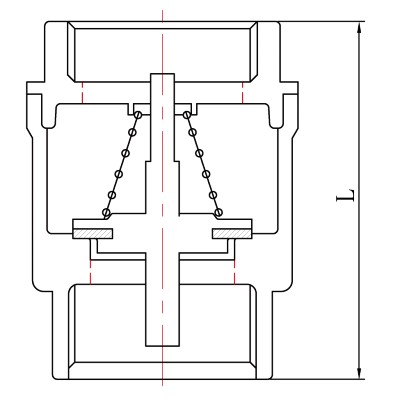

| 尺寸 | ½˝ | ¾˝ | 1 | 1¼˝ | 1½˝ | 2 | 2½˝ | 3 |
| L | 64 | 71 | 75 | 82 | 91 | 97 | 115 | 119 |
