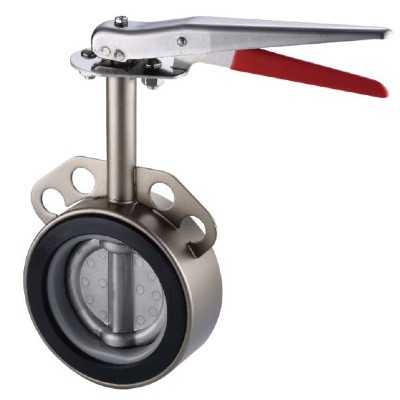

STAINLESS STEEL BUTTERFLY VALVE FIG.611PL
JIS - 10K
FIG.611PL- KURIMOTO白蝶
STAINLESS STEEL BUTTERFLY VALVE
Wafer type body, Center driver disc, Memory stop level.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Stainless Steel |
| 閥桿 STEM | Stainless Steel |
| 檔流盤 DISC | Stainless Steel |
| 檔流墊圈 SEAT | EPDM |
| 把手 HANDLE | Stainless Steel |
| 最高使用壓力MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST | ||
|---|---|---|---|
| 90°C以下之靜流水 | 90°C以下之脈動水、油、空氣 | 閥 體 | 閥 座 |
| 10kg f/cm2 | - | 15kg f/cm2 | 11kg f/cm2 |

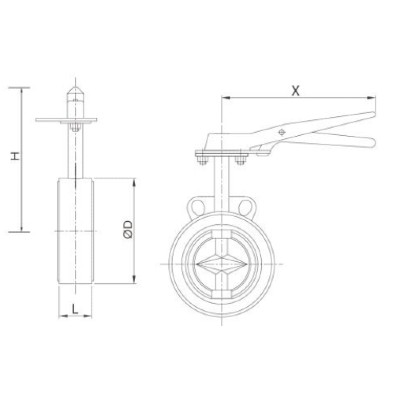

| 尺寸 | 2" | 21/2" | 3" | 4" | 5" | 6" |
| L | 43 | 46 | 46 | 52 | 56 | 56 |
| øD | 83 | 100 | 115 | 140 | 170 | 198 |
| X | 180 | 180 | 180 | 180 | 250 | 250 |
| H | 186 | 193 | 200 | 215 | 245 | 260 |
