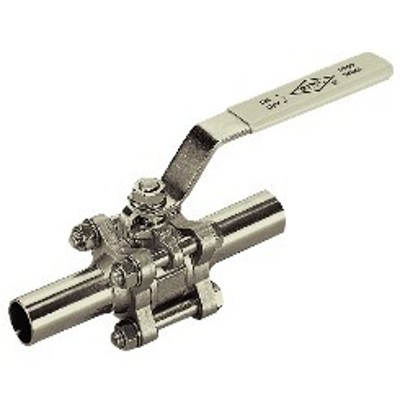

THREE PIECES STAINLESS STEEL BALL VALVE FIG.932L
1000型三件式
FIG.932L-不銹鋼球塞閥
THREE PIECES STAINLESS STEEL BALL VALVE
Full port blowout-proof stem,Reinforced PTFE.anti-leakage,Butt welded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | STAINLESS STEEL |
| 閥蓋 BONNET | STAINLESS STEEL |
| 閥球 BALL | STAINLESS STEEL |
| 球墊 BALL SEAT | PTFE/RPTFE |
| 閥桿 STEM | STAINLESS STEEL |
| 迫緊 PACKING | PTFE |
| 格蘭 GLAND | STAINLESS STEEL |
| 螺帽 STEM NUT | STAINLESS STEEL |
| 把手 HANDLE | STAINLESS STEEL |
| 最高使用壓力 MAX.WORKING PRESSURE | |
|---|---|
| 常溫之水、油、瓦斯及空氣 | 飽和蒸汽 |
| 70.3 kg f/cm2 | 10.5 kg f/cm2 |

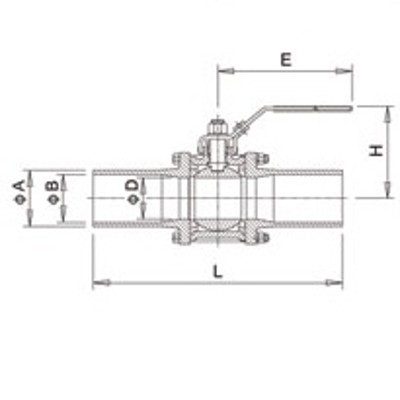

| 尺寸 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
| ΦA | 21.7 | 27.2 | 34 | 42.7 | 48.6 | 60.5 | 76.3 | 89.1 |
| ΦB(Sch.5) | 18.4 | 23.9 | 30.7 | 39.4 | 45.3 | 57.2 | 72.1 | 84.9 |
| ΦB(Sch.10) | 17.5 | 23 | 28.4 | 37.1 | 43 | 54.9 | 70.3 | 83.1 |
| ΦD | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 |
| L | 140 | 140 | 152 | 160 | 190 | 203 | 254 | 280 |
| E | 120 | 120 | 140 | 140 | 188 | 188 | 282 | 282 |
| H | 50 | 55 | 65 | 78 | 95 | 105 | 130 | 145 |
依客戶需求可承製拋光處理。單位/mm。
