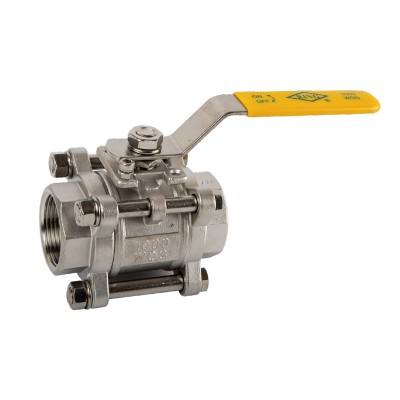

THREE PIECES STAINLESS STEEL BALL VALVE FIG.931
1000型三件式
FIG.931-不銹鋼球塞閥
THREE PIECES STAINLESS STEEL BALL VALVE
Full port blowout-proof stem,Reinforced PTFE.Anti-leakage,Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CF8M |
| 閥蓋 BONNET | CF8M |
| 閥桿 STEM | SUS316 |
| 閥球 BALL | CF8M |
| 球墊 BALL SEAT | PTFE |
| 把手 HANDLE | SUS304 |
| 最高工作壓力／Max.working pressure | |
|---|---|
| 120˚C 以下水、油、氣 | 1000WOG |
| 120˚C below. water oil gas. | 70 kgf/cm² |
| 飽和蒸汽／Saturated steam | 10.5 kgf/cm² |
| 閥體測試／Body test | 6 kgf/cm² (AIR) |
| 閥座測試／Seat test | 6 kgf/cm² (AIR) |

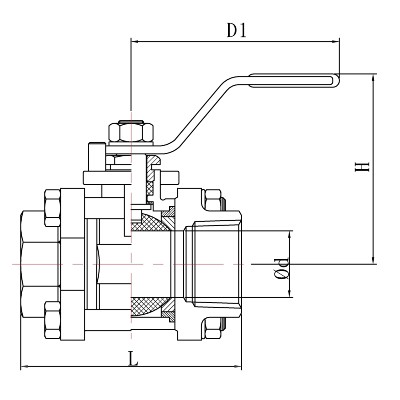

| 尺寸 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
| L | 66 | 76 | 85 | 99.4 | 112.4 | 133.8 | 165 | 186 |
| H | 55 | 55 | 65 | 78 | 95 | 105 | 130 | 145 |
| D1 | 120 | 120 | 140 | 140 | 192 | 192 | 282 | 282 |
| Ød | 15 | 20 | 25 | 31.8 | 38 | 50 | 65 | 80 |
