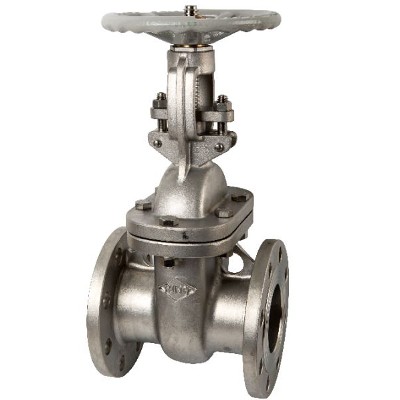

STAINLESS STEEL GATE VALVE FIG.964(CF8) / 965(CF8M)
JIS-10K
FIG.964(CF8)-不鏽鋼昇桿式閘閥
FIG.965(CF8M)-不鏽鋼昇桿式閘閥
STAINLESS STEEL GATE VALVE
Outside screw and yoke, Rising sem, Wedge disc, Renewable gland packing under pressure, Bolted bonnet, Flanged ends.(RF)
| 零件 PART | 材質 MATERIAL 964 | 材質 MATERIAL 965 |
|---|---|---|
| 閥體 BODY | A351-CF8 | A351-CF8M |
| 閥蓋 BONNET | A351-CF8 | A351-CF8M |
| 閥桿 STEM | SUS304 | SUS316 |
| 閥盤 DISC | A351-CF8 | A351-CF8M |
| 墊片 GASKET | PTFE | PTFE |
| 格蘭 GLAND | A351-CF8 | A351-CF8M |
| 迫緊 PACKING | PTFE | PTFE |
| 手輪 HANDWHEEL | Cast Iron | CI |
| 最高工作壓力／Max.working pressure | 試驗壓力(水壓)HYD. TEST |
|---|---|
| 請參閱溫度/壓力基準表 |
註：閥座可加焊STELLTE(司太合金)耐磨料
註：可承製14"&16"

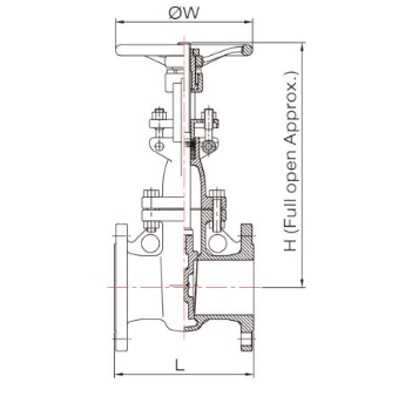

| 尺寸 | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 |
| H | 180 | 186 | 211 | 218 | 275 | 310 | 352 | 450 | 510 | 620 | 720 | 995 | 1115 | 1385 |
| øW | 100 | 100 | 100 | 140 | 140 | 160 | 180 | 200 | 225 | 250 | 250 | 350 | 400 | 400 |
