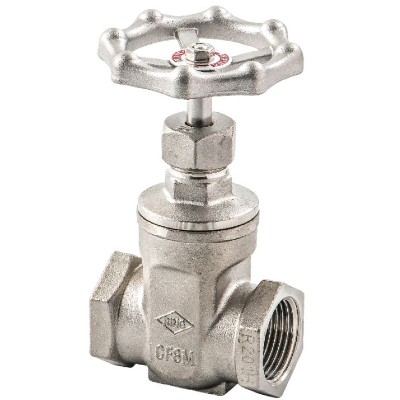

STAINLESS STEEL GATE VALVE FIG.901
300PSI
FIG.901-不鏽鋼閘閥
STAINLESS STEEL GATE VALVE
Soild wedge disc, Screwes bonnet, Non-rising stem, Integral seat, Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CF8M |
| 閥蓋 BONNET | CF8M |
| 閥桿 STEM | SUS316 |
| 閥盤 DISC | CF8M |
| 墊片 GASKET | PTFE |
| 格蘭 GLAND | CF8 |
| 迫緊 PACKING | PTFE |
| 手輪 HANDWHEEL | CF8 |
| 最高使用壓力MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST | |
|---|---|---|
| 120°C以下之水、油、空氣 | 閥 體 | 閥 座 |
| 300 PSI | 450 PSI | 330 PSI |

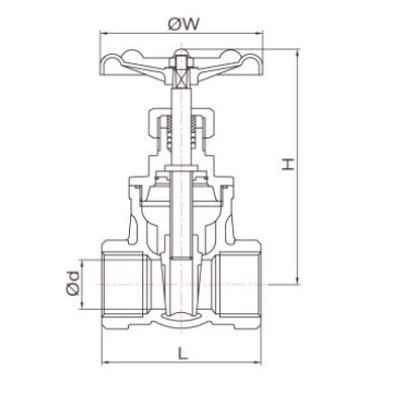

| 尺寸 | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
| L | 57 | 61 | 70 | 76 | 87 | 95 |
| H | 102 | 108 | 115 | 135 | 145 | 170 |
| øW | 61 | 61 | 71 | 83 | 83 | 94 |
| ød | 16 | 20 | 26 | 32 | 40 | 50 |
