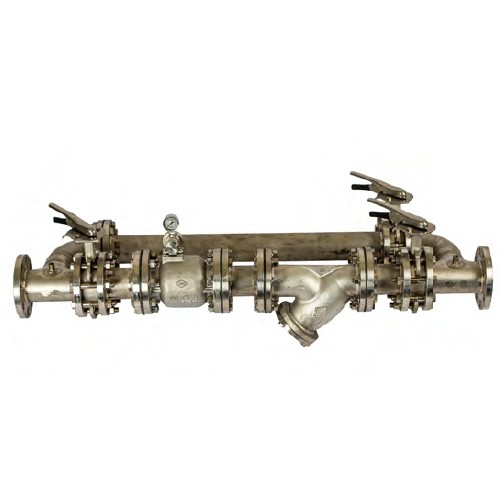

PRESSURE REDUCING VALVE SET BY-PASS TYPE FIG.528E5
不銹鋼減壓閥組
FIG.528E5(法蘭式)
PRESSURE REDUCING VALVE SET BY-PASS TYPE
Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 蝶閥 528E5 | Stainless Steel |
| Y型過濾器 Y-Str | Stainless Steel |
| 減壓閥 Red | Stainless Steel |
| 不銹鋼短管 Pipe | Stainless Steel |
| 不銹鋼管 Pipe | Stainless Steel |
| J型接頭 J-type Connectore | Stainless Steel |
| 最高工作壓力／Max.working pressure | ||
|---|---|---|
| 工作溫度範圍 | 出口調壓範圍 | |
| 0˚C~80˚C | 2.5~3 kg f/cm2(HYD.) | |
| 尺寸 | 2˝ | 2½˝ | 3" | 4˝ | 5˝ | 6˝ |
| L | 1100 | 1219 | 1300 | 1478 | 1661 | 1774 |
| H | 185 | 216 | 245 | 302 | 360 | 420 |
