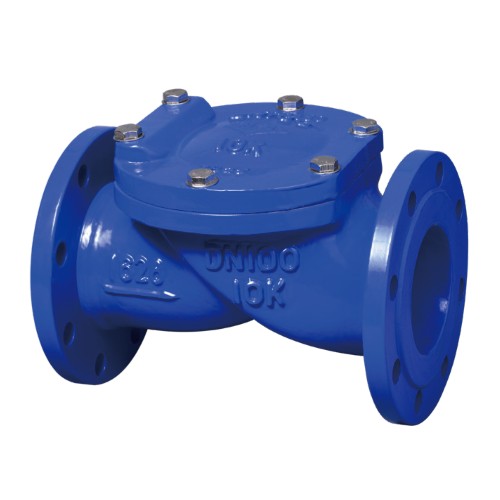

RESILIENT FLAPPER CHECK VALVE FIG.860
彈性板逆止閥
FIG.860
RESILIENT FLAPPER CHECK VALVE
Rubber seated, Bolted bonnet, Flanged ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 Body | Ductile Iron |
| 墊片 Sealing | NBR |
| 閥蓋 Cover | Ductile Iron |
| 閥板 Plate | Steel+NBR |
| 最高工作壓力／Max.working pressure | 試驗壓力(水壓)HYD. TEST | |
|---|---|---|
| 80°C以下之水、油、空氣 | 閥體 | 閥體 |
| 10 kg f/cm2 | 15 kg f/cm2 | 11 kg f/cm2 |

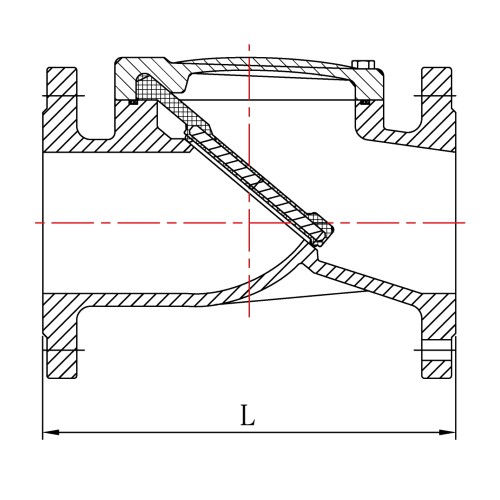

| 尺寸 | 2˝ | 2½˝ | 3" | 4˝ | 5˝ | 6˝ | 8˝ | 10˝ | 12˝ |
| L | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 698 |
