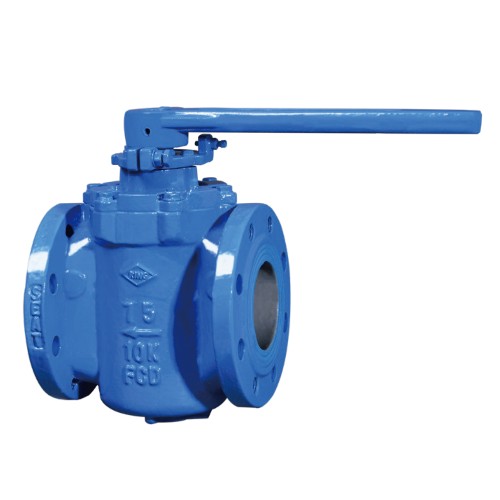

ECCENTRIC PLUG VALVE FIG.835
偏心柱塞閥
FIG.835
ECCENTRIC PLUG VALVE
Resilient seated, Flanged ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 Body | Ductile Iron |
| 閥蓋 Cove | Ductile Iron |
| 柱塞 Plug | Ductile Iron+NBR |
| 閥座 Seat | Stainless Steel(2"~6") Ductile Iron(8"~12") |
| 最高工作壓力／Max.working pressure | |||
|---|---|---|---|
| 閥體測試／Body test | 閥座測試／Seat test | 工作溫度範圍 | |
| 10 kg f/cm2(HYD.) | 15 kg f/cm2(HYD.) | 11 kg f/cm2(HYD.) | 0˚C~80˚C |

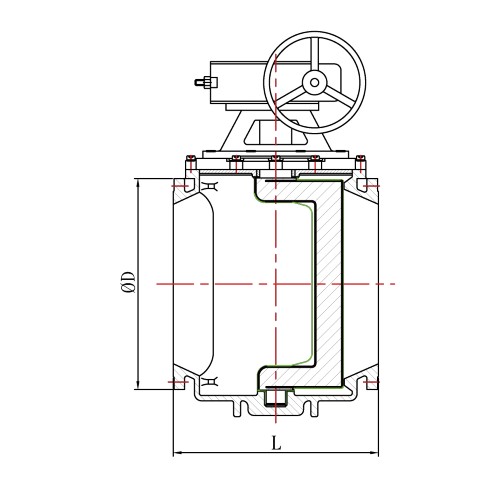

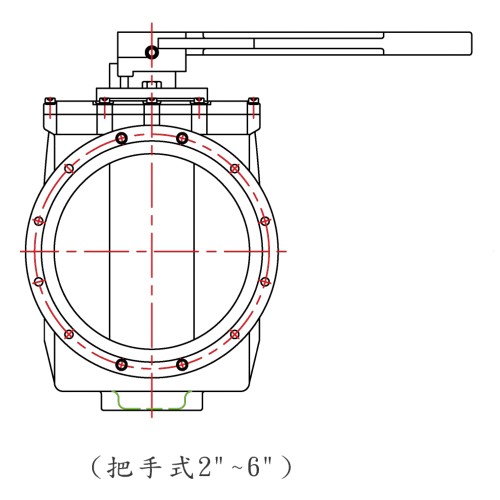

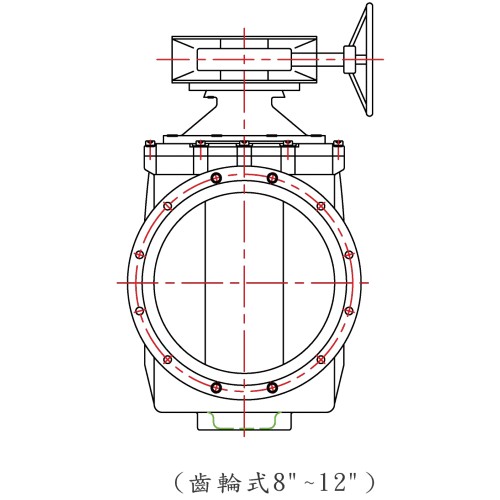

| 尺寸 | 2˝ | 2½˝ | 3" | 4˝ | 5˝ | 6˝ | 8˝ | 10˝ | 12˝ |
| L | 175 | 191 | 203 | 229 | 229 | 267 | 292 | 330 | 356 |
| ØD | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 |
