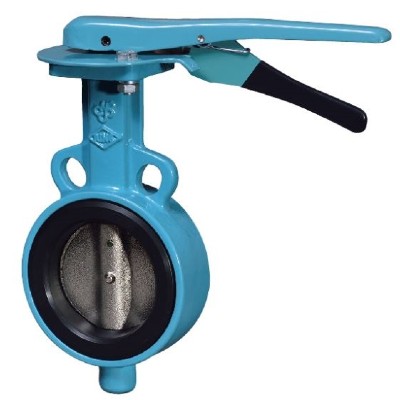

CAST IRON BUTTERFLY VALVE FIG.090A/093A
JIS - 10K
FIG.090A/093A-鑄鐵手把式蝶閥
CAST IRON BUTTERFLY VALVE
Wafer type body, Renewable seat, Center driver disc, Conform to CNS 12744 B2801.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Cast Iron |
| 閥桿 STEM | Stainless Steel |
| 檔流盤 DISC | Ductile Iron (Option：Stainless steel) |
| 檔流墊圈 SEAT | EPDM (Option：NBR) |
| 把手 HANDLE | Steel |
| 最高使用壓力MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST | ||
|---|---|---|---|
| 90°C以下之靜流水 | 90°C以下之脈動水、油、空氣 | 閥 體 | 閥 座 |
| 10kg f/cm2 | - | 15kg f/cm2 | 11kg f/cm2 |

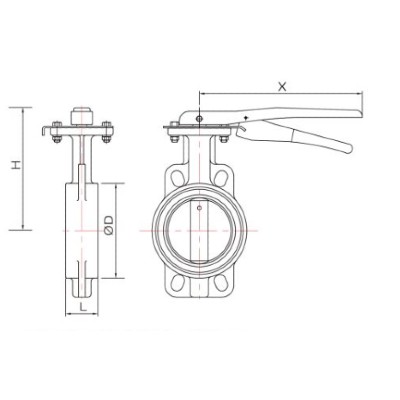

| 尺寸 | 2" | 21/2" | 3" | 4" | 5" | 6" |
| L | 43 | 46 | 46 | 52 | 56 | 56 |
| øD | 95.5 | 112.5 | 127 | 154 | 185 | 212.5 |
| X | 198 | 198 | 198 | 245 | 245 | 245 |
| H | 173 | 186 | 191 | 200 | 226 | 237 |
