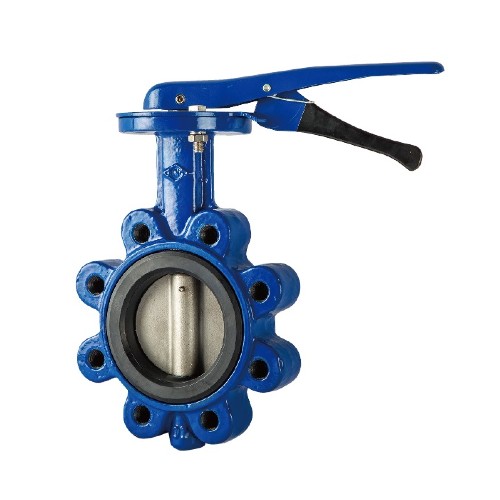

DUCTILE IRON BUTTERFLY VALVE FIG.896A
JIS-10K/150LB
FIG.896A(全耳把手式蝶閥)
DUCTILE IRON BUTTERFLY VALVE
Lug type body. Renewable seat, Center driver disc, Memory stop level.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Ductile Iron |
| 閥桿 STEM | STAINLESS STEEL |
| 閥流盤 DISC | STAINLESS STEE |
| 擋流墊圈 SEAT | EPDM |
| 把手 Handle | Steel |
| 最高使用壓力 | 試驗壓力(水壓) | |
|---|---|---|
|
120°C以下之靜流水 120°C Under non shock |
閥體 | 閥座 |
| 10.0 kg f/cm2 | 15 kg f/cm2(HYD.) | 11 kg f/cm2(HYD.) |

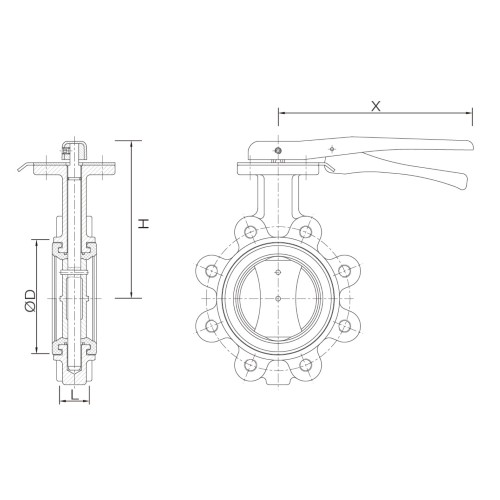

| 尺寸 | 2 | 21/2 | 3 | 4 | 5 | 6 |
| L | 43 | 46 | 46 | 52 | 56 | 56 |
| ΦD | 95.5 | 112.5 | 127 | 154 | 185 | 212.5 |
| X | 200 | 200 | 200 | 250 | 250 | 250 |
| H | 163 | 178 | 185 | 200 | 222 | 229 |
