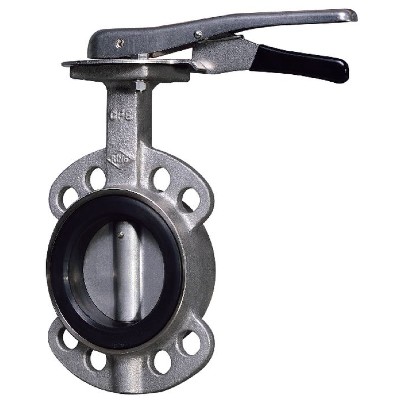

STAINLESS STEEL BUTTERFLY VALVE FIG.990A
JIS - 10K
FIG.990A-不銹鋼把手式蝶閥
STAINLESS STEEL BUTTERFLY VALVE
Wafer type body, Renewable seat, Eccentric driver disc, Memory stop level.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Stainless Steel |
| 閥桿 STEM | Stainless Steel |
| 檔流盤 DISC | Stainless Steel |
| 檔流墊圈 SEAT | EPDM |
| 把手 HANDLE | Stainless Steel |
| 最高使用壓力MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST | ||
|---|---|---|---|
| 90°C以下之靜流水 | 90°C以下之脈動水、油、空氣 | 閥 體 | 閥 座 |
| 10kg f/cm2 | - | 15kg f/cm2 | 11kg f/cm2 |
1.本產品均實施固溶化熱處理CNS4000 G3092。
2.安全前須關閉閥盤。

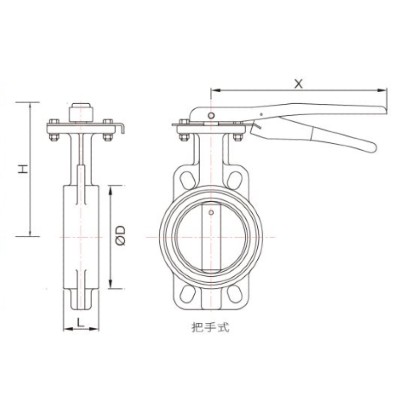

| 尺寸 | 2" | 21/2" | 3" | 4" | 5" | 6" |
| L | 43 | 46 | 46 | 52 | 56 | 56 |
| øD | 95.5 | 112.5 | 127 | 154 | 185 | 212.5 |
| X | 200 | 200 | 200 | 250 | 250 | 250 |
| H | 173 | 186 | 191 | 200 | 224 | 235 |
